  • Brand Name: TP-WIRELESS
  • Package: Yes
  • Model Number: WTG02
  • Style: Headset Microphone
  • Communication: Wireless
  • Use: Conference Microphone
  • connectors: 3.5mm
Product Description

SOYO Technology Development Co.,Ltd.

2.4GHz Wireless Tour Guide System Wireless Microphone 3 transmitters 30 for teaching, tour guiding, church



small yellow star1 Picture of tour guide system


small yellow star1 Customs fee for special logo

If you want to print your customs logo,you can click the link here and to pay exta customs fee:

small yellow star1 Where you can put customs logo

Where you can put customs logo:

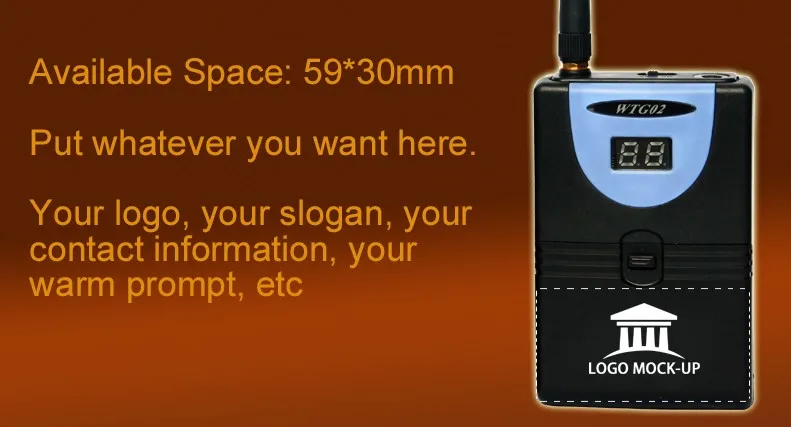

Available Space: 59*30mm

Available Language: Any kinds of language

Available Picture: No more than 4 colors

Craft: Silk-Screened Printing

Subsequent Costs: No need to pay for follow-on order.

small yellow star1 Introduction

  • SOYO\'s products was famous for innovation profession and reliability. SOYO\'s wireless tour guide system and wireless translation system was widely adopted by APEC2014 summit, Louvre Museum, Angkor Wat, etc

small yellow star1 Features of the wireless transmitter and receiver

1. Transmit frequency 2400-2480 MHz; Real digital transmit;

2. 30 selectable channels, no need to worry about signal interference. Current channel, battery level status, volume level status can be shown.

3. It can reach up to about 100 meters in an open area;

4. Shortest latency(<0.5ms) in this industry.

5. Ultra-low power consumption, more than 12 hr continuous work time for transmitter, more than 20 hr continuous work time for receiver

6. Powered by 2 AA battery, Recharge is support if your AA battery is rechargeable;

7. Small in size, easy to install, flexible in design and support customization;

8. Audio mute when no signal or weak signal existing;

9. CE / CCC approved.

small yellow star1 Specification of the wireless transmitter and receiver

  • Carrier Frequency: 2400-2483MHz
  • Frequency Response: 30Hz-18KHz
  • Sampling Rate: 16K@16bit*2
  • Number of Channels: 30
  • Transmit Power: ≤18dBm
  • S/N Ratio: ≥75dB
  • Latency: <0.5ms
  • Max Operating  Range:100 meters
  • Power Supply: 2* AA battery
  • Recharge: Support

small yellow star1 Attention


  1. Before your payment, please make sure you have made the right choice. This price is for one/two/three/four color Silk-Screened Printing.
  2. After the payment, please send us your artwork of Logo and tell us what you want to print, then we will do a rendering and send it back to you to confirm with you. After your confirmation, we will start to do the printing.
  3. You only need to pay the custom fee for the first time, for the follow-on orders(in condition of no any change in your customs logo), it will be free.
  4. You\'d better leave your e-mail for further communication timely
  5. The sampling rate for tour guide application is 16K@16bit*2, the sound is not good enough for music transmission.If you want to use the system for music transmission, please give us a remind after the payment, we will change the sampling rate to 64K@16bit*2, which will be HDCD sound quality, but the cover range will be only 15 meters.

small yellow star1 Packing list

  • 3*TP-WTG02(Tx) transmitter
  • 30*TP-WTG02(Rx) Receivers
  • 3* Headworn Microphone
  • 30* Earphones
  • 1* User Manual

Kindly note, the AA battery is not include(You have to buy battery by yourself).

blue star4 Introduction of SOYO Technology Development Co., Ltd.

  • We specialize in wireless audio of 2.4G/5.8G/UHF/Bluetooth for 11 years. We are the professional holder of digital wireless Audio/Video technologies. We believe in wireless makes a easier life. We hope we can provide the world a easier lifestyle with our technologies, products and OEM&ODM capability.

blue star4 Shipping

  • Normally shipping is by Airmail from China Post Air Mail or Hong Kong Post Air Mail ,15-60 days shipping time based on different country .
  • Express is available, shipping time is 2~7 days all over the world, and telephone number is needed. Please contact us first for extra payment .

blue star4 Return Policy

  • All mails will be replied to within 24 hours except on weekend and holidays.
  • Every item is manufactured under Strict Quality Assurance Guidelines. If you are dissatisfied for any reason, please return the product to us, and we\'ll refund your money(not including shipping fees).
  • Please ensure that return items are not used.
  • Return items must be Posted within 7 days of receipt.
  • Please inform us via email before posting your return package.

blue star4 Import Tax

  • We will dispatch the item as SAMPLE or GIFT , label the total amount on the custom declare invoice .
  • Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to buying.

blue star4 Contact Us

  • We will carefully examine again before the shipment and try our best to avoid your loss.If there are any quality problems,please feel free to contact us any time with picture and your question.


Lookup Similar Products:


  • You may be interested in other similar products-WTG12 earhook tour guide system,which is more convenience than WTG02.If you are,please click here.

WTG 12  3 Transmitter and 30 Receiver



Packaging Details
  • Unit Type: Set
  • Package Weight: 6.12kg (13.49lb.)
  • Package Size: 28cm x 27cm x 72cm (11.02in x 10.63in x 28.35in)
Calculate your shipping cost by country/region and quantity.
Quantity: Ship to:
Packaging Details
  • Unit Type: Set
  • Package Weight: 6.12kg (13.49lb.)
  • Package Size: 28cm x 27cm x 72cm (11.02in x 10.63in x 28.35in)
